The easy-to-use and reliable network node.



3 versions are available:

LUNA 4
LUNA 8
LUNA 16






Downloads & Documents

Find all brochures, drivers, firmware updates, user manuals, and more here:

Download
















Average Hardware Failure And Return Rate – LUNA 4
(Last Update: December 2023)
0.25 %

Average Hardware Failure And Return Rate – LUNA 8
(Last Update: December 2023)
0.20 %

Average Hardware Failure And Return Rate – LUNA 16
(Last Update: December 2023)
0.05 %













The MADRIX LUNA reliably distributes DMX512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.



Art-Net / Streaming ACN / USB
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network.

4/8/16 DMX-OUT + 1 DMX-IN
4, 8, or 16 XLR ports (5-pin, female) distribute the equal number of DMX universes per unit. 1 XLR port (5-pin, male) can be used for DMX input. Simply use several units at the same time for larger projects.



Any small or large project greatly benefits from dependable data distribution and efficient operation. Use any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.

Sync Mode
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions.



Easy Configuration
MADRIX LUNA offers powerful features, especially in combination with MADRIX 5. Take full advantage of pixel mapping and voxel mapping. The installation of the device is still quick and easy.

3rd-Party Controllers
MADRIX LUNA complies with the official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.



Quality Design
Devices are built 19″ x 1U or 19″ x 2U. They feature a fanless, noiseless, low-energy design, a durable metal case, and NEUTRIK plugs. 2 premounted brackets make rack mounting possible. 5 indicators quickly show the status of a device.

Invaluable Features
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable for future enhancements. Access and change specific device settings using the built-in web configuration page.







Did You Know?
As a receiving unit, the 100 MBit/s RJ45 Ethernet connection is more than enough. In our FAQs and especially for large projects, we recommend to use Art-Net and 1 GBit/s for the network switch and network card. For the sender of all the data, the higher bandwidth is required. Often, Art-Net data is sent in broadcast mode where all receivers get all the data. With MADRIX 5 however, we also support unicast mode to just sent the required data to each single unit to save bandwidth. In all cases, MADRIX LUNA provides the performance you need.







MADRIX LUNA

MADRIX LUNA



    Connectivity
  • 4x/8x/16x DMX-OUT
  • 1x DMX-IN
  • 1x RJ45 Ethernet port
  • 1x USB port
  • 1x Power socket
    Package Contents
  • 1x MADRIX LUNA
  • 1x Power cord (IEC C13)
  • 1x USB 2.0 cable (certified)
  • 2x Rack-mount brackets (already mounted to the device)
  • 1x Technical manual / quick start guide







Made in Germany




5 Years of Warranty




Ecological Sustainability





Technical Specifications

Power Supply

AC 100 V – 240 V, 50-60 Hz, 0.4 A max., IEC C14 inlet

Power Consumption

< 5 W during normal operation

BTU/h

5.50 (LUNA 4) | 8.80 (LUNA 4) | 10.20 (LUNA 16) during normal operation

Network Protocols

Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)

DMX512 (OUT)

4x / 8x / 16x 512 DMX channels output

DMX512 (IN)

1x 512 DMX channels input

Ports (OUT)

5-pin, XLR, female, NEUTRIK

Port (IN)

5-pin, XLR, male, NEUTRIK

Ethernet

1x RJ45, Auto MDI-X, NEUTRIK etherCON, 10/100 MBit/s (Compatible with 1 GBit/s)

USB

1x port, USB 2.0, type-B female socket

Handling

5 status LEDs

Case

Metal enclosure (With attached brackets for 19″ rack mounting)

Size

19˝ × 1U (LUNA 4 / LUNA 8) | 19˝ × 2U (LUNA 16)

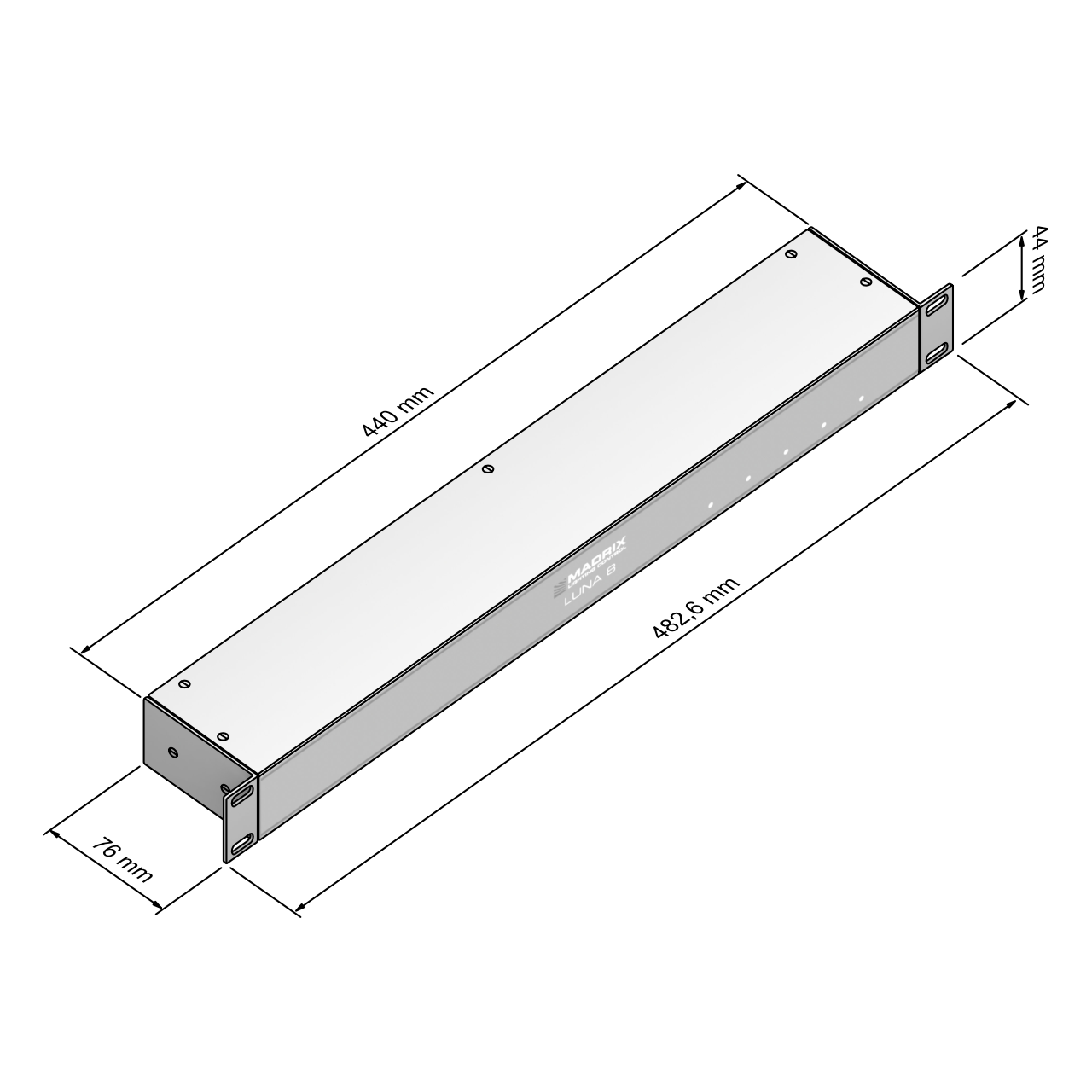

Dimensions (Body Only)

76 mm × 440 mm × 44 mm (3˝ × 17.32˝ × 1.75˝) (Length × Width × Height)

Dimensions (Total)

76 mm × 482.6 mm × 44 mm (3˝ × 19˝ × 1.75˝) (Length × Width × Height)

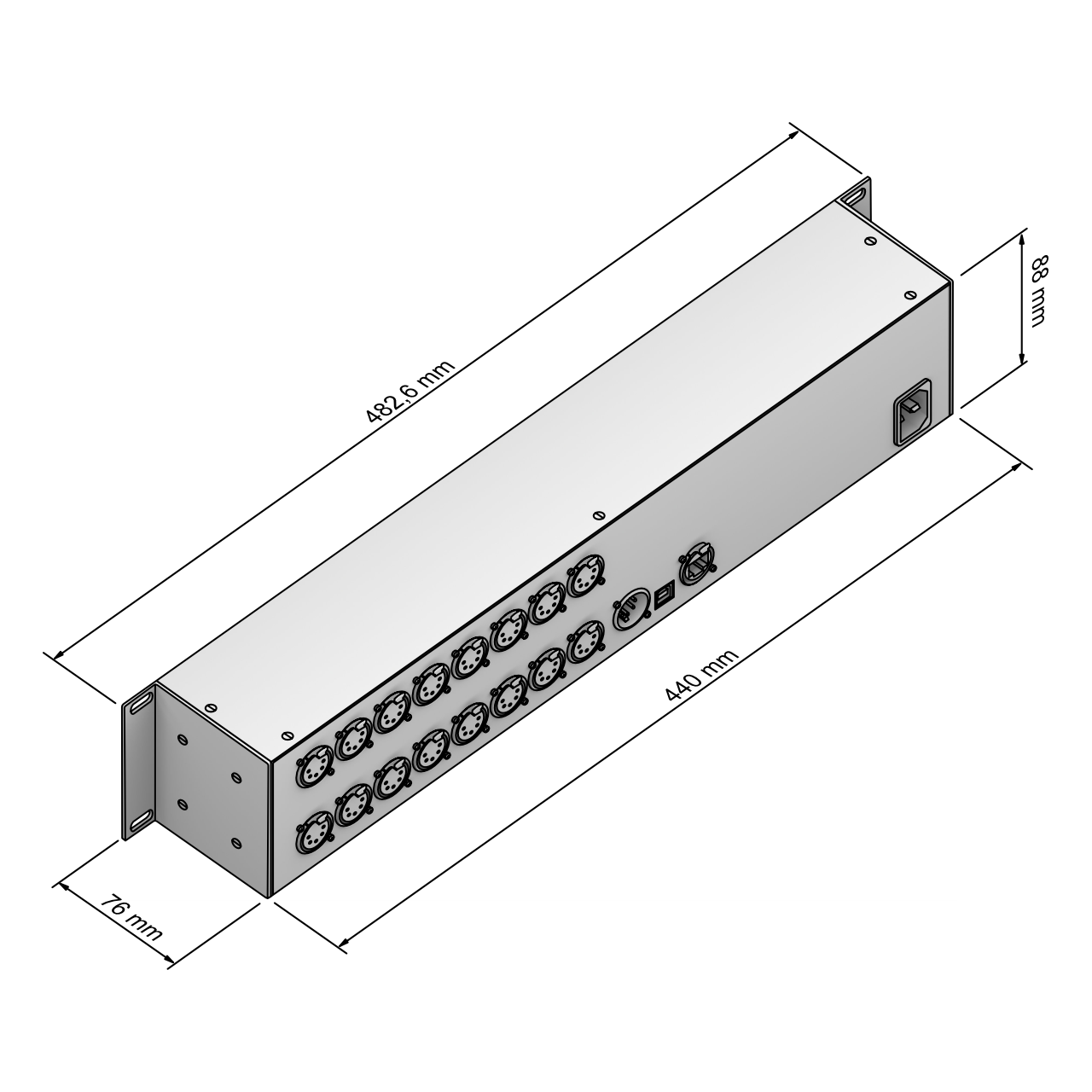

Dimensions (LUNA 16)

76 mm × 482.6 mm × 88 mm (3˝ × 19˝ × 3.5˝) (Length × Width × Height)

Weight

1.3 kg (2.87 lb) (LUNA 4) | 1.4 kg (3.09 lb) (LUNA 8) | 2.0 kg (4.41 lb) (LUNA 16)

Temperature Range

-10 °C to 60 °C (14 °F to 140 °F) (Operating) | -20 °C to 70 °C (-4 °F to 158 °F) (Storage)

Relative Humidity

20 % to 80 %, non-condensing (Operating / Storage)

IP Rating

IP20

Certificates

CE, EAC, FCC, RoHS

Warranty

5 years of limited manufacturer's warranty
