MADRIX AURA
The advanced lighting-control recorder and stand-alone playback unit.
3 versions are available:
AURA 2
AURA 12
AURA 32
Downloads & Documents
Find all brochures, drivers, firmware updates, user manuals, and more here:
Large-scale pixel mapping requires bulky computers needing regular maintenance, doesn't it? You'd be surprised.
MADRIX AURA is small in size, but mighty in features. It is the MADRIX stand-alone unit.
Configurations with 2, 12, or 32 universes bring captivating installations to life. As the central hub, you can count on independent lighting control. The built-in website makes it easy to get started.
First, record any Art-Net or Streaming ACN network stream live. MADRIX AURA then plays back sophisticated light shows, effects, and visuals from SD card. Run a scheduled playlist, or trigger scenes externally with choices like MADRIX ORION.
Simply press record. Simply press play.
Average Hardware Failure And Return Rate – AURA 2
(Last Update: February 2021)
0.00 %
Average Hardware Failure And Return Rate – AURA 8
(Last Update: February 2021)
0.00 %
Average Hardware Failure And Return Rate – AURA 32
(Last Update: February 2021)
0.00 %
The MADRIX AURA is the central stand-alone controller for simple recording and large-scale pixel mapping.
It redefines what is possible in a compact control unit with exceptional performance.
Stand-Alone Playback
Independently run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN. Easily control up to 2, 12, or 32 universes per device.
Live Recording
Record any Art-Net or Streaming ACN network stream onto the inserted memory card. Unlike any other solution, recording a beautiful light show with MADRIX 5 is as easy as pressing record and play.
Time-Controlled Shows
Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.
Master-Slave Synchronization & Scalability
Manage large projects simply by connecting several units. The entire group is automatically synchronized across all DMX universes for flawless and uninterrupted playback.
Web Configuration
Use the built-in web configuration page to access and change specific device settings, such as the important IP address, universes, playlist settings, and much more.
Live Control

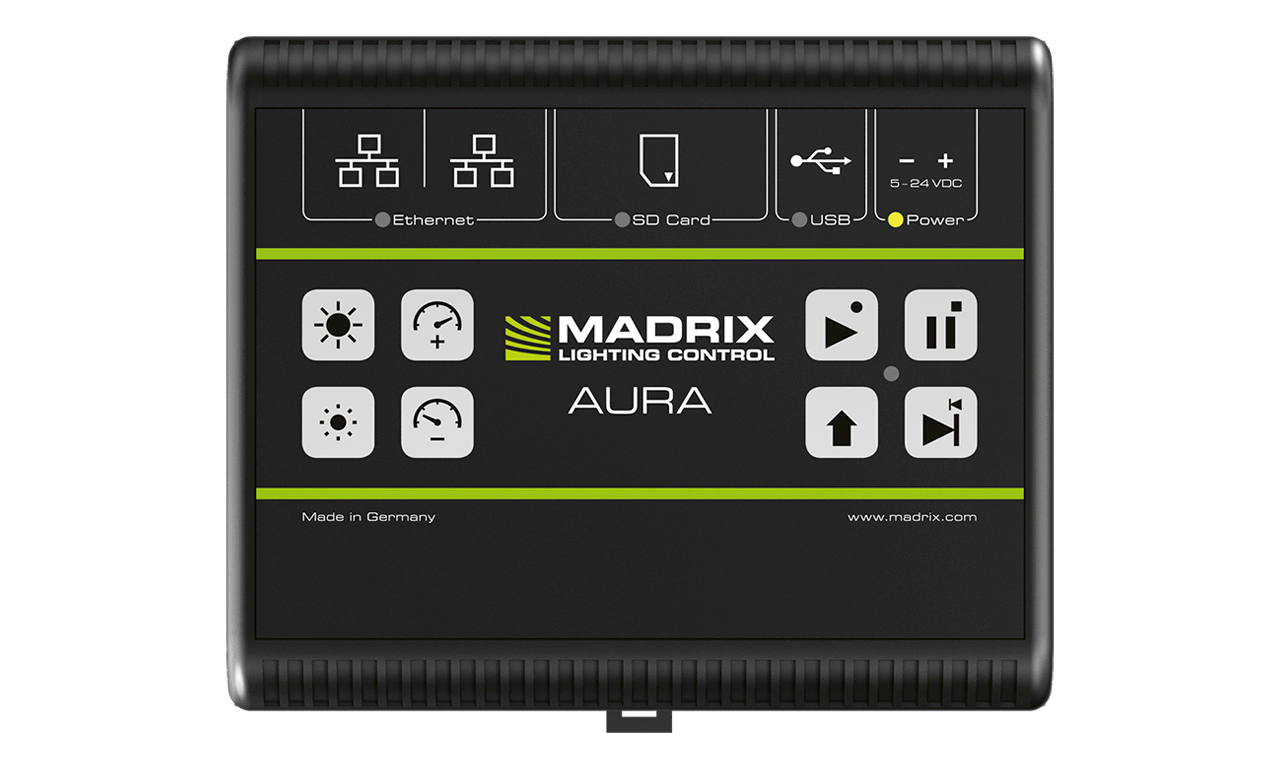

Encased in a non-conductive design for DIN rails or wall mounting, 8 on-device buttons allow for quick playback and recording control. You can also directly adjust the overall speed and intensity.
Central Hub
Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures.
LED Lighting Control
MADRIX 5 is the ultimate tool for pixel mapping in 2D or 3D. Use it as the source and content provider for MADRIX AURA, or record any Art-Net or Streaming ACN network stream onto the inserted memory card.
Remote Control
Trigger MADRIX AURA via user-definable HTTP commands and the built-in web server or use Art-Net/sACN. You can even add MADRIX ORION for interactive installations.
See Releated Products: MADRIX 5 Software | MADRIX LUNA | MADRIX NEBULA | MADRIX STELLA | MADRIX ORION
- Connectivity
- 2x RJ45 Ethernet ports
- 1x SD-Card slot
- 1x USB port
- 1x Power (via pluggable screw terminal)
- Package Contents
- 1x MADRIX AURA
- 1x SDHC card (inserted into the device)
- 1x Network cable
- 1x Pluggable screw terminal (2-pin)
- 2x Wall-mount brackets
- 1x Technical manual / quick start guide
Technical Specifications
Supply Of Power
DC 5 V – 24 V; over A) 2-pin, pluggable screw terminal or B) 5 V USB
Power Consumption
2.5 W (500 mA) during normal operation (500 mA max. fused)
BTU/h
8.53 during normal operation
Network Protocols
Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)
RDM Role
Acts on commands and replies to requests with its own status and sensor data via ArtRdm (RDM Responder)
Output
2x / 12x / 32x 512 DMX channels output over Ethernet network
Recording Input
2x / 12x / 32x 512 DMX channels input over Ethernet network
Remote-Control Input
8x 512 DMX channels received over Ethernet network, or Remote HTTP
SD-Card Slot
Supports SD, SDHC, and SDXC cards (Tested up to 64 GB)
Ethernet
2x RJ45, Auto MDI-X, daisy-chain support, 10/100/1000 MBit/s
Ethernet Switch
Lookup Table (ALU) for 4,096 unicast MAC addresses
USB
1x port, USB 2.0, type-B female socket
Handling
8 control buttons, 6 status LEDs (+ 4 network status LEDs)
Case
Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting
Dimensions
86 mm × 105 mm × 49 mm (3.39˝ × 4.13˝ × 1.93˝) (Length × Width × Height)
Weight
148 g (0.33 lb) | 154 g (0.34) incl. screw terminal, SD card, and wall mounts
Temperature Range
-10 °C to 70 °C (14 °F to 158 °F) (Operating) | -20 °C to 85 °C (-4 °F to 185 °F) (Storage)
Relative Humidity
5 % to 80 %, non-condensing (Operating / Storage)
IP Rating
IP20
Certificates
CE, EAC, FCC, RoHS
Warranty
5 years of limited manufacturer's warranty
