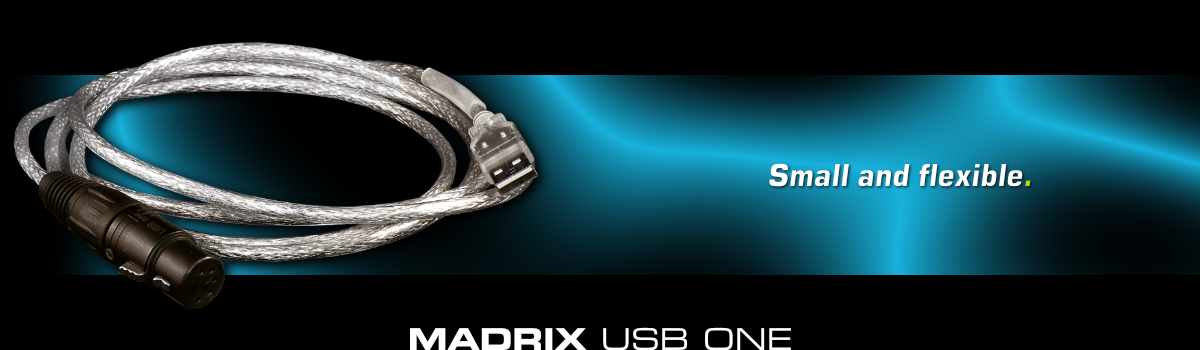

MADRIX USB ONE

MADRIX USB ONE



One of the smallest USB interfaces for DMX output or input.








Downloads & Documents

Find all brochures, drivers, firmware updates, user manuals, and more here:

Download








The MADRIX USB ONE allows you to control 512 DMX channels using MADRIX 5. Mainly used for DMX input, an additional MADRIX KEY (a software license) is required for DMX output.



DMX-IN/OUT With 5-Pin NEUTRIK XLR Port
This device allows you to send or receive DMX data using 512 DMX channels. A male to male 3-pin or 5-pin XLR Gender Changer is required for DMX-IN.

Hot Swapping & Plug and Play
Devices can be connected to and disconnected from the computer during use and without a reboot.



USB 2.0 Standard
The USB 2.0 standard is fully supported to allow for a higher maximum speed of 480 MBit/s.

Remote Control
MADRIX 5 can be controlled remotely using the implemented DMX-IN functions.



Power Over USB
The interface is powered directly via the USB port and does not need an additional power supply.

Frame Rate Stability
Up to 60 devices can be connected to a USB host controller without having any frame rate problems. (60 DMX512 interfaces amount to 30,720 DMX channels.)



High Quality
The USB ONE represents high quality made in Germany and is very reliable.

Active USB
Please connect every USB ONE to an active USB 2.0 port or use a USB 2.0 hub with a power supply.



Average Hardware Failure And Return Rate
(Last Update: February 2021)
0.126 %

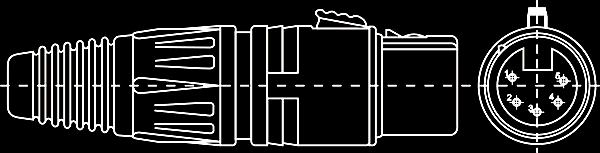

MADRIX USB ONE Illustration









Technical Specifications

Supply Of Power

DC 5 V, 500 mA, Power over USB

Power Consumption

~ 55 mA during normal operation

DMX512

512 DMX channels, input or output

Plug

5-pin, XLR, female, NEUTRIK

USB

1x port, USB 2.0, type-A male plug, Plug and Play, 2 m cable

Weight

105 g

Temperature Range

10 °C to 50 °C (Operating) | -10 °C to 70 °C (Storage)

Relative Humidity

5 % to 80 %, non-condensing (Operating / Storage)

IP Rating

IP20

Certificates

CE, EAC, FCC, RoHS

Warranty

5 years of limited manufacturer's warranty
