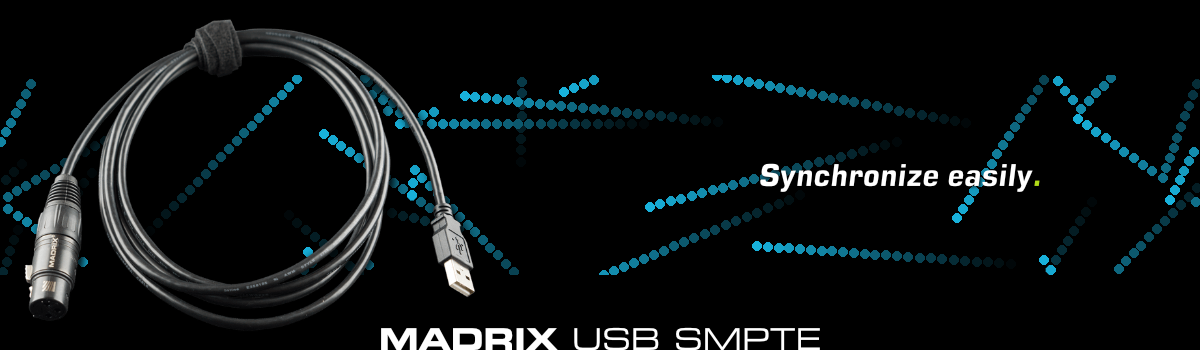

MADRIX USB SMPTE

MADRIX USB SMPTE



MADRIX ORION

Simply add time code synchronization to your projects.








Downloads & Documents

Find all brochures, drivers, firmware updates, user manuals, and more here:

Download










MADRIX I/O
MADRIX I/O products are supplementary input and output devices. External equipment brings additional automation processes and interaction to any LED project using MADRIX 5.

SMPTE Time Code
This input device allows you to effortlessly use SMPTE time code for time synchronization across your equipment and multiple devices.

Standard Connectors
Data is received via the 3-pin, female XLR connector. The device can simply be connected to any USB 2.0 port.

Example Of Use
Synchronize the automated playback of scenes and effects in MADRIX 5 by using the Cue List.



Connectivity
  • 1x IN (3-pin XLR)
  • 1x USB port
Package Contents
  • 1x MADRIX USB SMPTE
  • 1x Technical manual / quick start guide



Average Hardware Failure And Return Rate
(Last Update: February 2021)
0.0 %











Technical Specifications

Supply Of Power

DC 5 V, 500 mA, Power over USB

Power Consumption

~ 50 mA during normal operation

Plug

3-pin, XLR, female, NEUTRIK

USB

1x port, USB 2.0, type-A male plug, Plug and Play, 2 m cable

Weight

110 g

Temperature Range

10 °C to 50 °C (Operating) | -10 °C to 70 °C (Storage)

Relative Humidity

5 % to 80 %, non-condensing (Operating / Storage)

IP Rating

IP20

Certificates

CE, EAC, RoHS

Warranty

5 years of limited manufacturer's warranty
