Have you ever thought about luring people into the store/club/ride by letting them interact with the lighting?
As a general-purpose input device, MADRIX ORION fits right in.
Transform your next project by introducing interactive elements. How about a convenient button? How about a motion sensor?
Connect switches, potentiometers, and triggers. Include sensors for light, temperature, passive infrared, and more. Integrate building automation and home automation.
8 versatile inputs receive analog signals from 0 V – 12 V. Converted into 8-bit or 16-bit digital DMX, MADRIX ORION outputs Art-Net or Streaming ACN over Ethernet network.
Average Hardware Failure And Return Rate
(Last Update: February 2021)
The MADRIX ORION is specifically designed as a general-purpose input device for analog input and Ethernet-based output for remote control and interactivity.
Powerful A/D Converter
Easily convert any analog input signal ranging from 0 V – 12 V into an 8-bit or 16-bit digital DMX output signal. Sample incoming signals instantly and map all inputs individually to up to 8 or 16 DMX channels per device.
Art-Net / Streaming ACN / USB
Send the output signal as Art-Net or Streaming ACN (E1.31) over long or short distances to any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.
8 Versatile Inputs

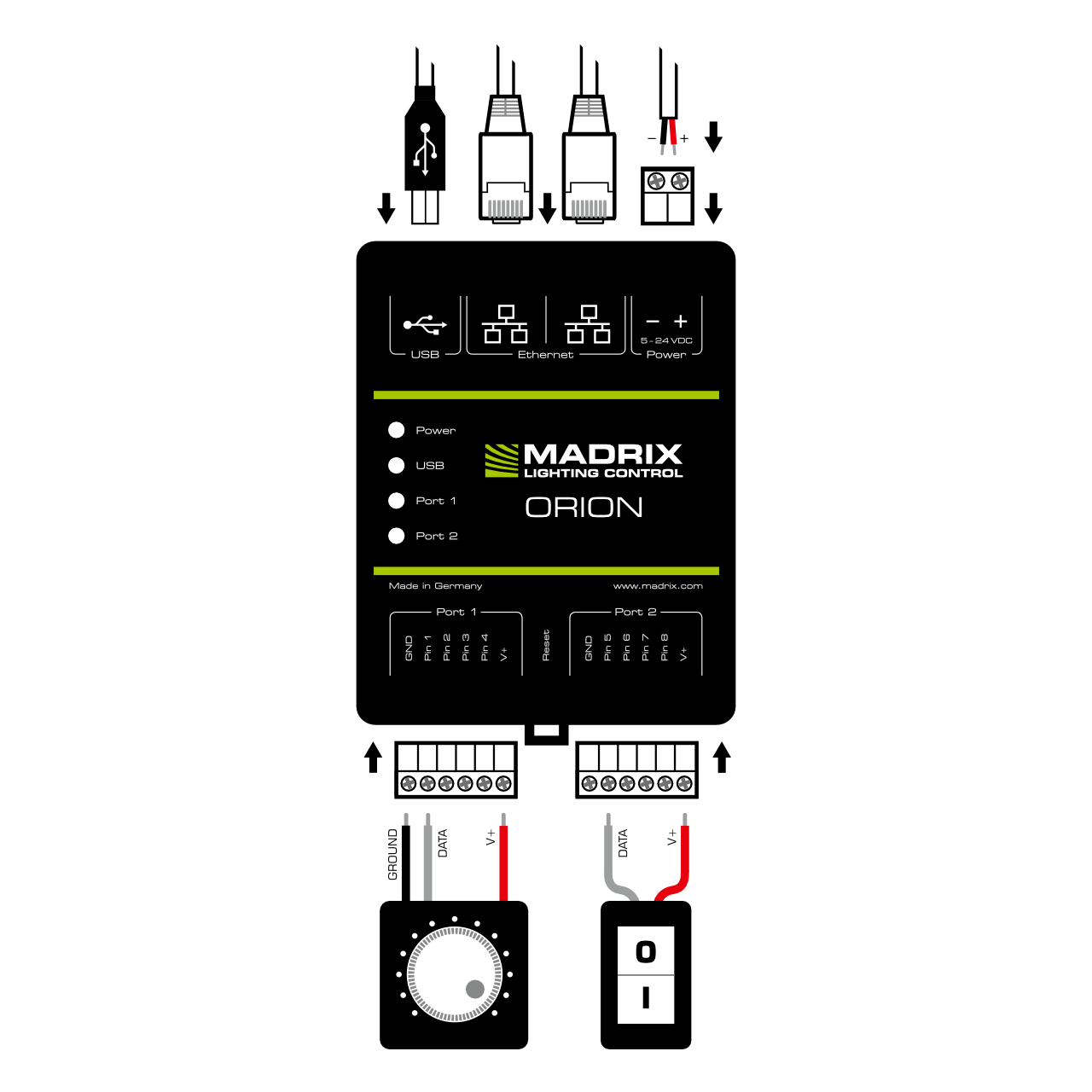

Directly connect to a wide range of compatible sensors, potentiometers, switches, and triggers. Easily create interactive projects using sensors for light, temperature, PIR, and many more.
Different input types allow data to be processed and parameterized differently for the output. Each input can be separately set as Analog-IN, Digital-IN, Counter, and other useful functions.
2 main 6-pin ports are available with 4 individual pins each as well as GND and V+. Flexibly supply 5 V – 24 V power over the 2-pin screw terminal.
2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together for better cable management.
Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.
The device is ready within seconds after startup. Its firmware is upgradable for future enhancements. Access and change specific device settings using the built-in web configuration page.

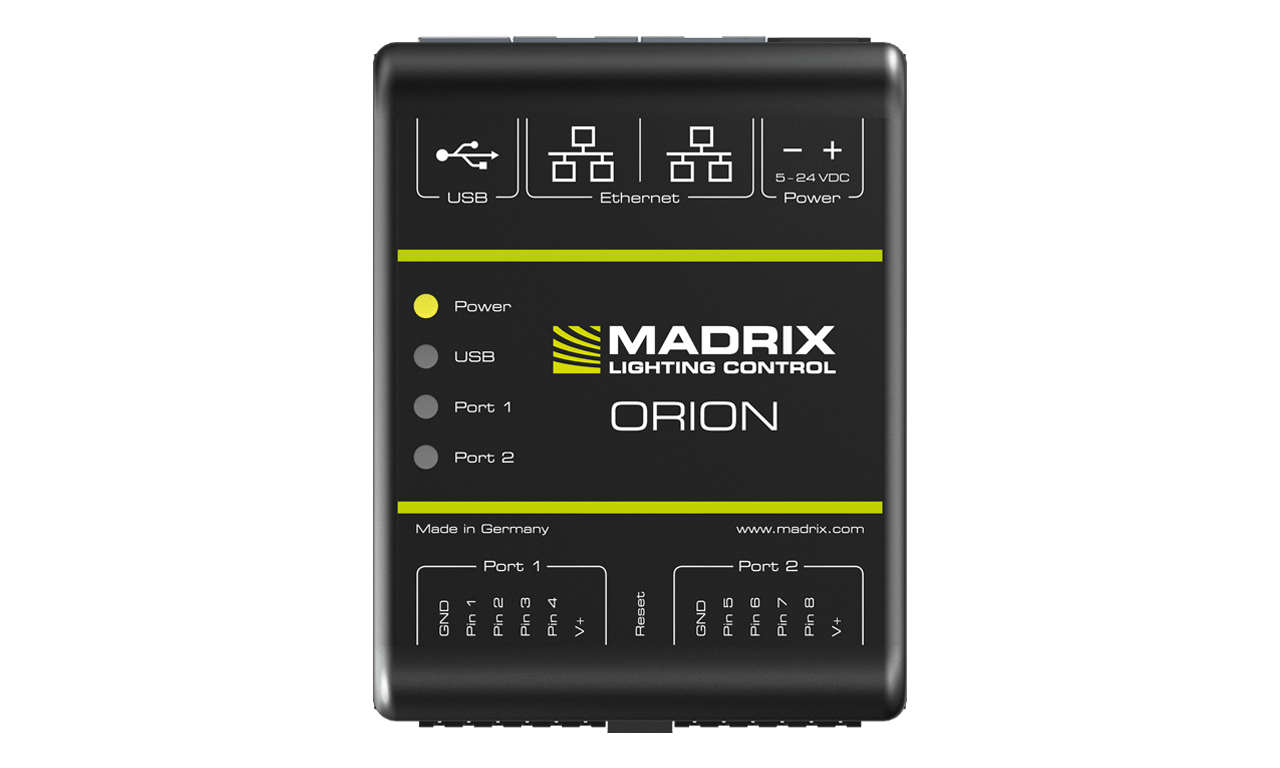

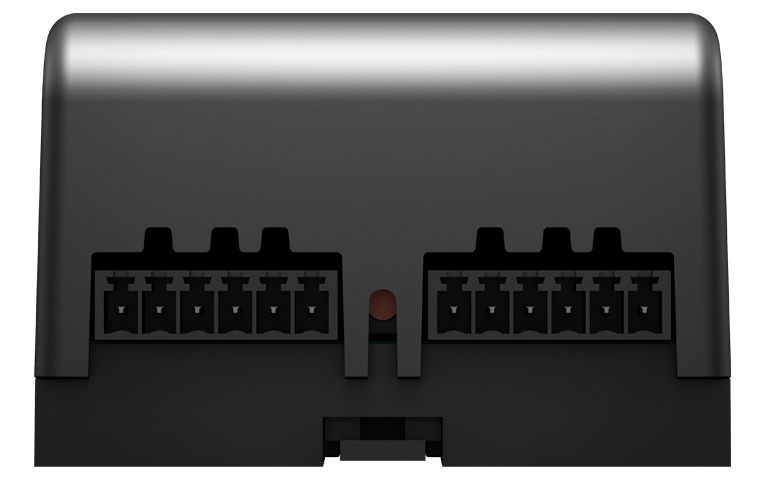

- 8x IN (via pluggable screw terminals)

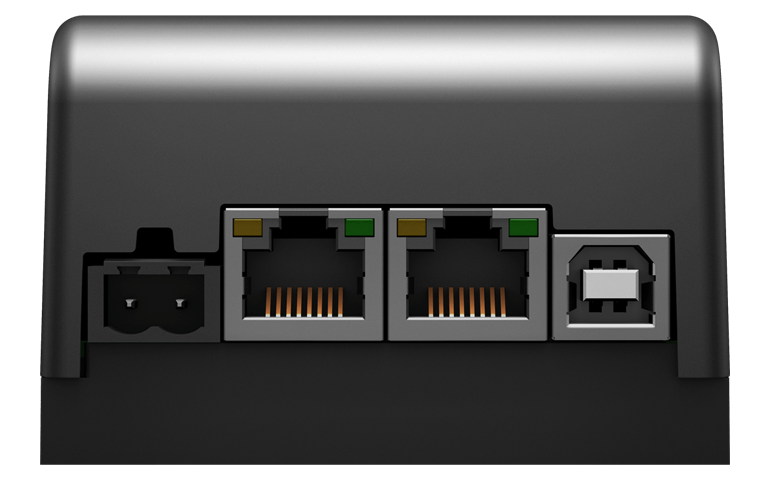

- 2x RJ45 Ethernet ports
- 1x USB port
- 1x Power (via pluggable screw terminal)
- Package Contents
- 1x MADRIX ORION
- 1x Set of screw terminals (2x 6-pin and 1x 2-pin)
- 1x USB 2.0 cable (certified)
- 2x Wall-mount brackets
- 1x Technical manual / quick start guide
Supply Of Power
DC 5 V – 24 V; over
A) 2-pin, pluggable screw terminal with 500 mA max. load per port when supplying through to the ports, B) 5 V USB, C) Port 1 or Port 2
< 1.5 W (300 mA) during normal operation (500 mA max. fused)
Art-Net (I, II, 3, 4), Streaming ACN (sACN / ANSI E1.31)
0 V – 12 V, analog
2x ports (Via 2x 6-pin pluggable screw terminals)
2x 4 separate pins (8x in total)
2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s)
Lookup Table (ALU) for 1024 unicast MAC addresses
1x port, USB 2.0, type-B female socket
5 status LEDs (+ 4 network status LEDs)
Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting

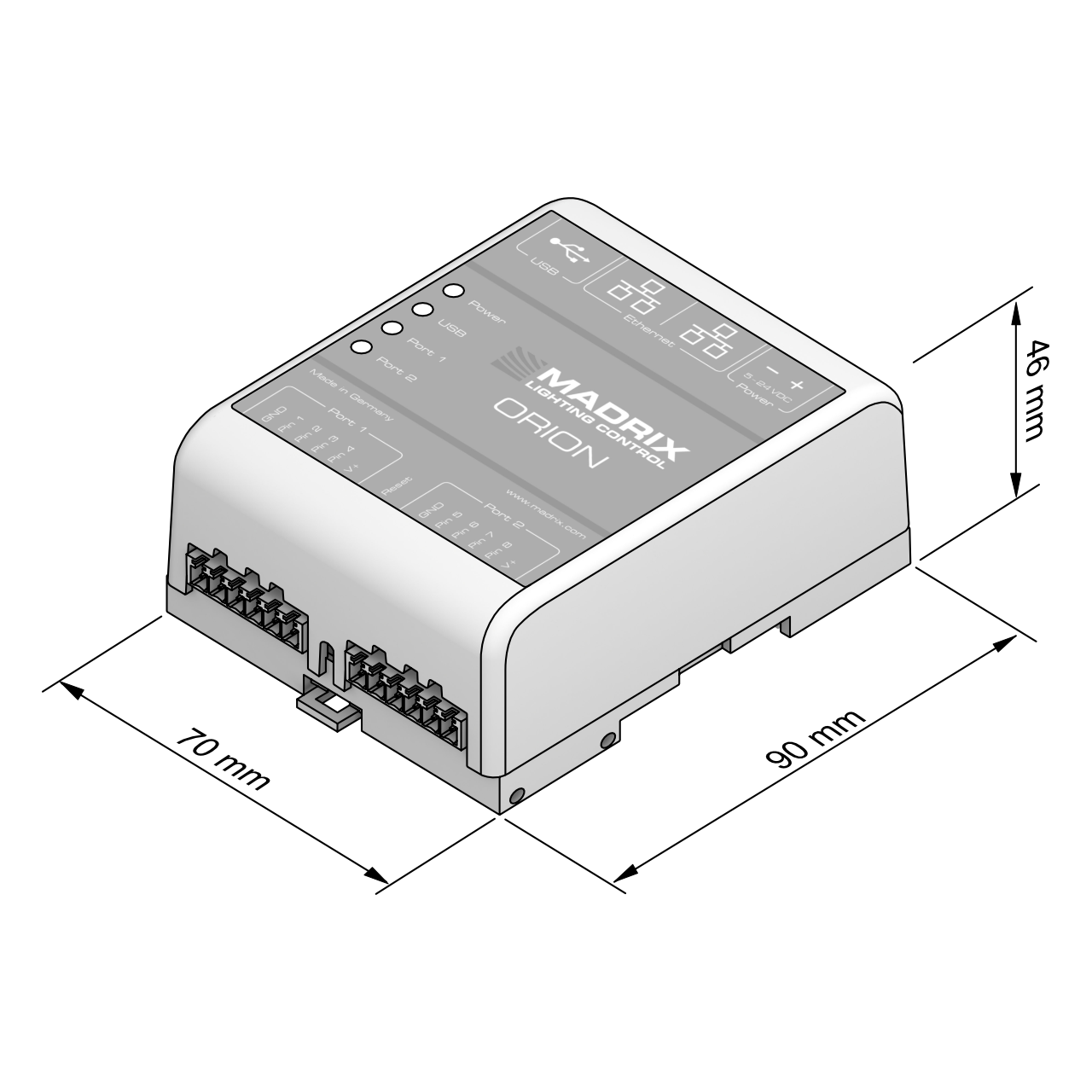

90 mm x 70 mm x 46 mm (Length x Width x Height)
105 g | 120 g incl. screw terminals and wall mounts
-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)
5 % to 80 %, non-condensing (Operating / Storage)
CE, EAC, FCC, RoHS
5 years of limited manufacturer's warranty
