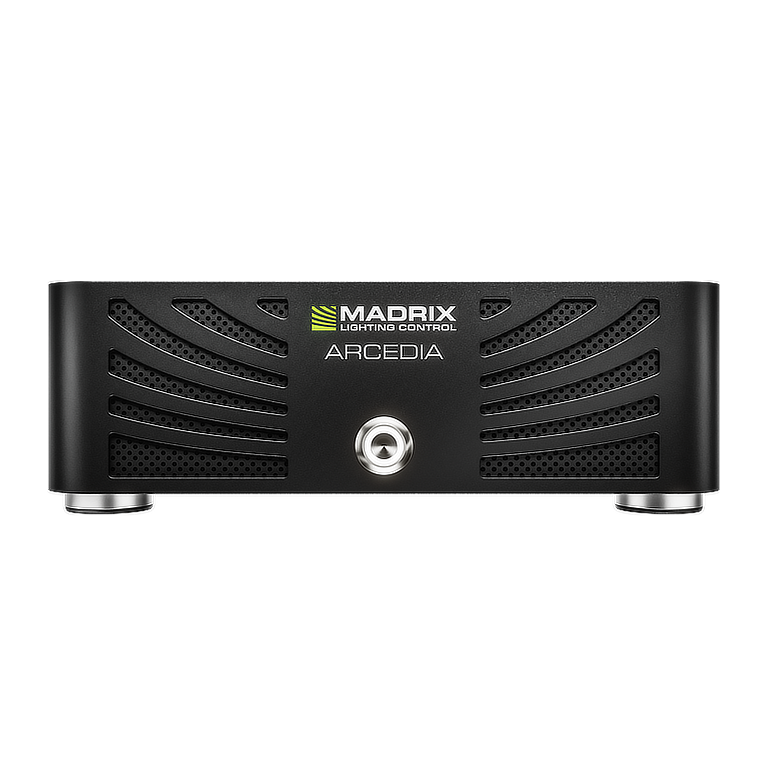

MADRIX ARCEDIA
The MADRIX turnkey solution for your next project.
MADRIX ARCEDIA is the professional live-rendering system to drive the stunning pixel mapping of your LED installation with MADRIX 5 Software in unique 2D or real 3D.
Ready For Production
You can immediately rely on a fully operational system out of the box. This bundle offer includes a reliable hardware platform and trusted MADRIX Software for configuration, control, and monitoring of your lighting setup.
Software Licenses Included
The high-value arcedia license for MADRIX 5 that unlocks 135,168 DMX Channels (264 DMX Universes).
A core license and a big data license that make it easy to get started with MADRIX RADAR.
All licenses are immediately ready for use.
Free Update To MADRIX 6
To give you planning certainty, the update to MADRIX 6 is free of charge for your MADRIX 5 arcedia software license once available.
Small Footprint — Big Impact
It features workstation graphics, fast disk speeds, even faster memory speeds, and powerful processing power in a compact form factor. Two units fit into 19″ × 1.5U.
Available Add-Ons
• Warranty Extension (Extend from 2 years to 3, 4, or 5 years.)
• Rackmount Bracket (Installation for 19″ racks, holding up to 2 units.)
Embrace Live Features
Take advantage of a full-fledged control system with live audio input for audio-based MADRIX 5 Effects and remote access (possible via VPN, remote-desktop applications, or similar), and more.
Installed Software Packages
To speed up setup times, the operating system, drivers, and software are already installed. 1x administrator account is configured for you.
It always ships with the latest versions of the MADRIX software applications pre-installed, including MADRIX 5, MADRIX RADAR, and MADRIX HARDWARE MANAGER.
Also installed are LAV video codecs for MADRIX 5, the PostgreSQL database & PgAdmin for MADRIX RADAR, and Wireshark for technical support.
Technical Specifications
MADRIX 5 Render Volume
1.5 million pixels (Recommended maximum for 2D or 3D)
MADRIX 5 Software License
1x arcedia software license (135,168 DMX channels / Lifetime / Included in purchase / Already activated)
MADRIX RADAR Software Licenses
1x core software license (Unlocks all RDM devices & sub-devices connected through 3rd-party RDM nodes for Parameters, Snapshots, Sensors, Status Messages / Lifetime / Included in purchase / Already activated)
1x big data software license (Unlocks the Big Data features / Included in purchase / Already activated)
Power Supply
External, 200 W, AC 100 – 240 V, 50 – 60 Hz, 9.0 A max.
Power Consumption
34 W (Idle) / 95 W (Typical) / 130 W (Max.)
BTU/h
116 (Idle) / 324 (Typical) / 443 (Max.)
Memory / Storage
ECC RAM (Error-correction code) / 1 TB (NVMe)

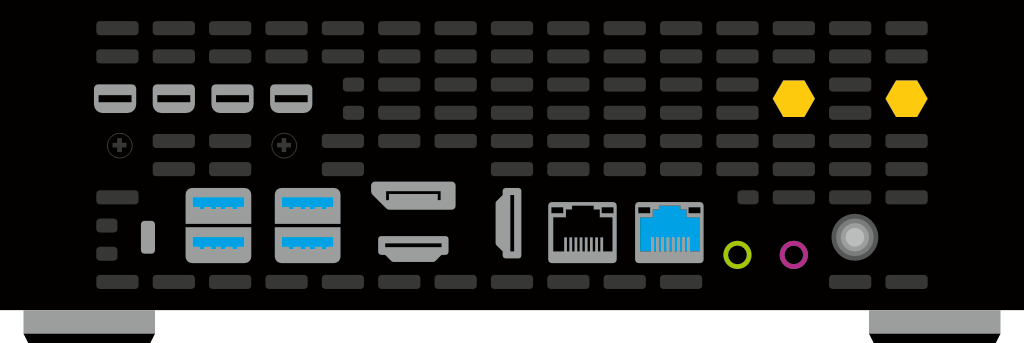

Output Ports (Monitors/Displays)
4x Mini DisplayPort 1.4a (Via dedicated GPU) / 2x HDMI 2.0b + 1x DisplayPort 1.4b (Via integrated GPU)
Maximum Resolution (Monitors/Displays)
4,096 × 2,160 (4x @ 120 Hz) /
5,120 × 2,880 (4x @ 60 Hz) / 7,680 × 4,320 (2x @ 60 Hz)
Color Depth (Monitors/Displays)
8-Bit / 10-Bit / 12-Bit
Ethernet (Network)
RJ45, 1x 2.5 GBit/s, 1x 1 GBit/s (Pre-configured with valid IP addresses)
Audio
2x 3.5 mm mini jacks (Line-OUT / Microphone)
USB
4x ports, 10 GBit/s (USB 3.2 Gen 2), type-A female socket
Operating System
Windows 11 Pro (Already installed)
Handling
Industrial hardware platform (Certified for 24/7 operation), Active cooling, Bluetooth, WiFi (Designed for remote access, not for data output), Power switch (Illuminated), Kensington security slot

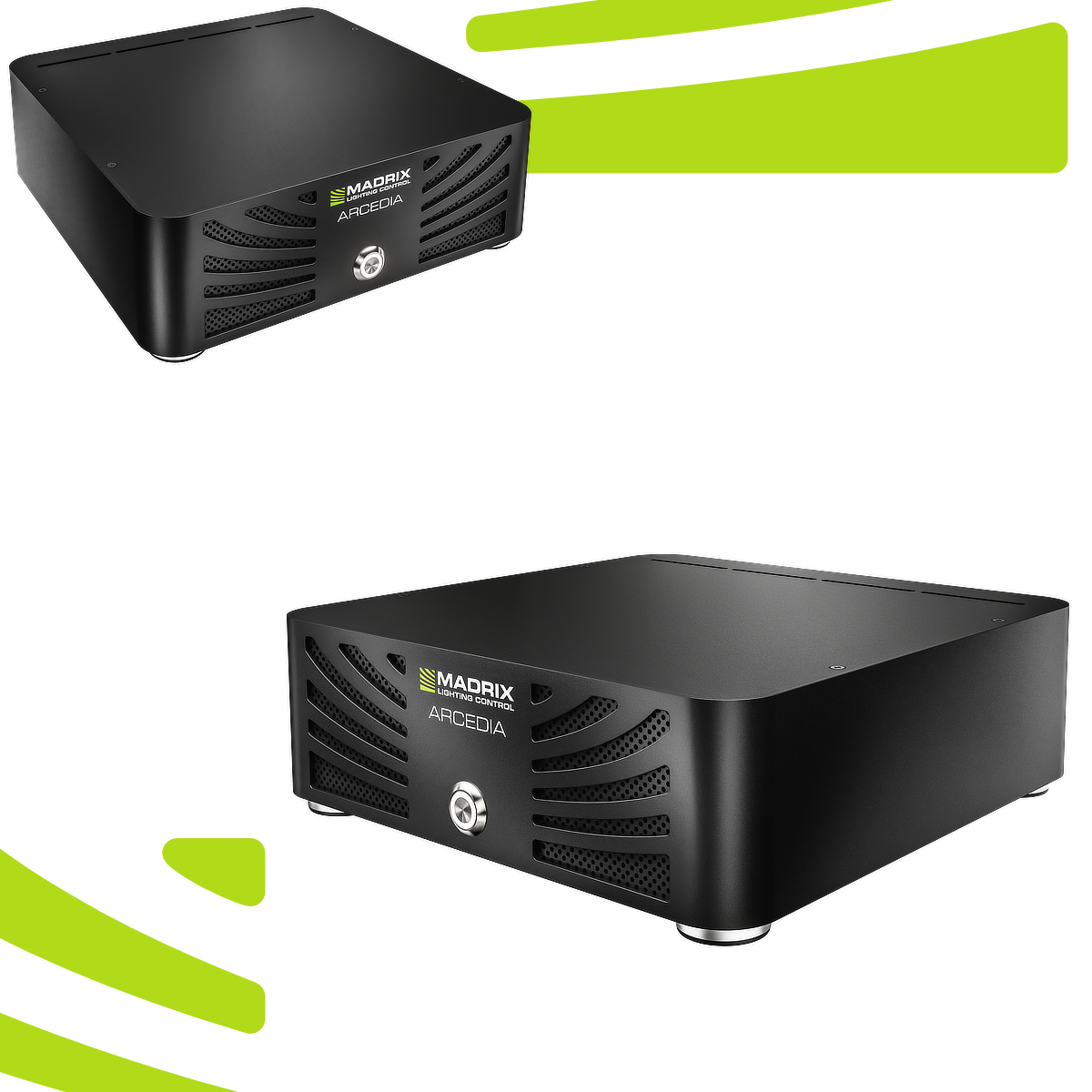

Case
218 mm × 218 mm × 73 mm (8.58″ × 8.58″ × 2.87″) (Length × Width × Height) (Incl. feet)
218 mm × 218 mm × 66 mm (8.58″ × 8.58″ × 2.60″) (Length × Width × Height) (Excl. feet)
Rack-Installation Depth
218 mm (8.58″)
Weight
2.1 kg (4.63 lb)
Package Accessories
1x Power supply, 1x VESA mount bracket (75 mm × 75 mm / 100 mm × 100 mm), 1x Technical manual,
Not included: Keyboard, mouse, monitor, network cables
Temperature Range
+10 °C to +36 °C (+50 °F to +97 °F) (Operating)
Relative Humidity
10 % to 90 %, non-condensing (Operating / Storage)
IP Rating
IP20
Certificates
CE, FCC, DIN 15781 (Entertainment Technology – Media Server)
Warranty
2 years of limited manufacturer's warranty (Extension up to 5 years available)
